Introduction

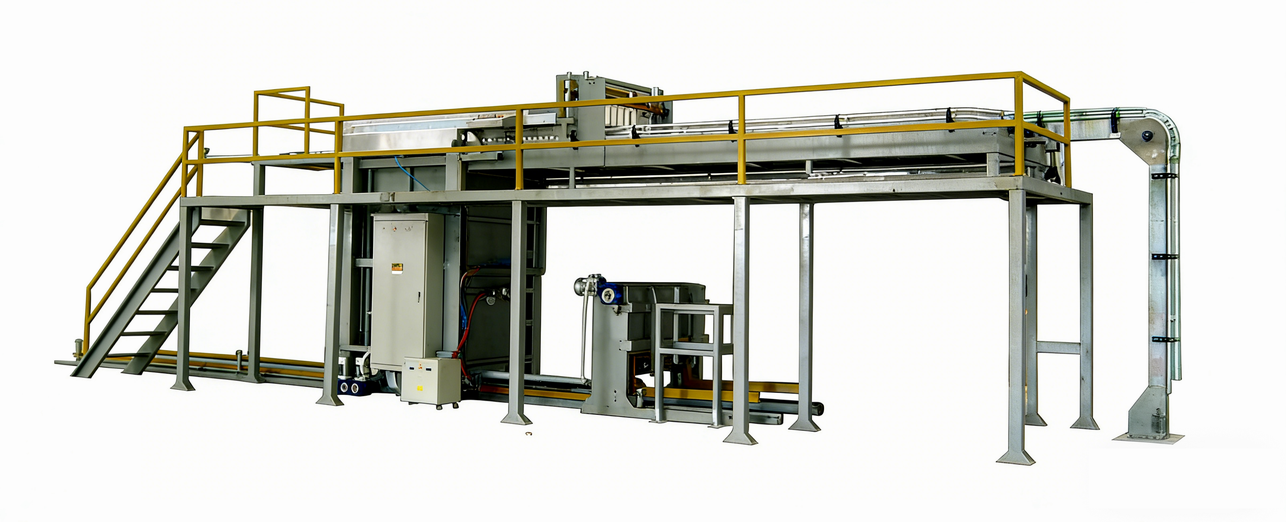

The palletizer is mainly used to stack the tin cans and aluminum cans. It automatically collects and arranges metal can by a plate chain conveyor. The palletizing machine has a unique sorting device, which is able to sort the cans according to its related size for stacking.
The cans are stacked by in layers and pile up layer by layer, starting at the bottom and moving to the top. The stacked cans are then transferred to the automatic film wrapping machine by the conveyor. The entire palletizing process includes automatic loading, feeding, ascending, sorting, stacking, and automatic descending, unloading and automatic film wrapping.
Advantages
1. The palletizer easily replaces the manual palletizing of cans, effectively saving manpower and improving production efficiency.
2. The machine adopts the PLC system to improve the accuracy of the mechanical movement, facilitating operations.
3. The stacker has a self-locking lifting platform. Its loading and unloading processes are automatically achieved using air cylinder lifting, which guarantees stable operation.
4. The equipment is adaptable and flexible. It can work either in a continuous operation or a single cycle operation.
The equipment consists of
1. Automatic loading and unloading mechanisms
2. Pallet positioning device
3. Automatic sorting unit
4. Lifting platform
5. Can feeding system
6. Plate chain conveyor
Structure and material
1. Strengthened two-line two-row palletizing out transmission chain, can hold two packaging body. The structure is carbon steel.
2. Transmission chain of main engine space (short chain), with carbon steel structure;
3. Transmission chain of empty board (empty board chain) and carbon steel structure.
4. Main engine space of layer upon layer palletizing, the frame is carbon steel structure. The three main inner plates are stainless steel plates.
5. Cans collecting transmission platform with high frame and net chain, carbon steel structure and low friction steel net chain.
6. Self-locked can lifting system with carbon steel structure
Technical Specification:
Palletizer type | Traditional type (high platform, magnetic portal palletizer) | New type (Robot palletizer) |
Model | KF-PT100 | KF-RT120A |
Stacking Height | 2,400mm | 2,400mm |
Pallet Size (2 standard sizes) | 1,100mm×1,400mm / 1,000mm×1,200mm | 1,100mm×1,400mm / 1,000mm×1,200mm |
Production Capacity | 300-700cpm | 700-1200cpm |
Can Size Range | D50mm-175mm, H50mm-320mm | D50mm-175mm, H50mm-320mm |
Applicable range | All kinds of tinplate cans, glass bottle and plastic bottle | All kinds of tinplate cans, glass bottle and plastic bottle |
