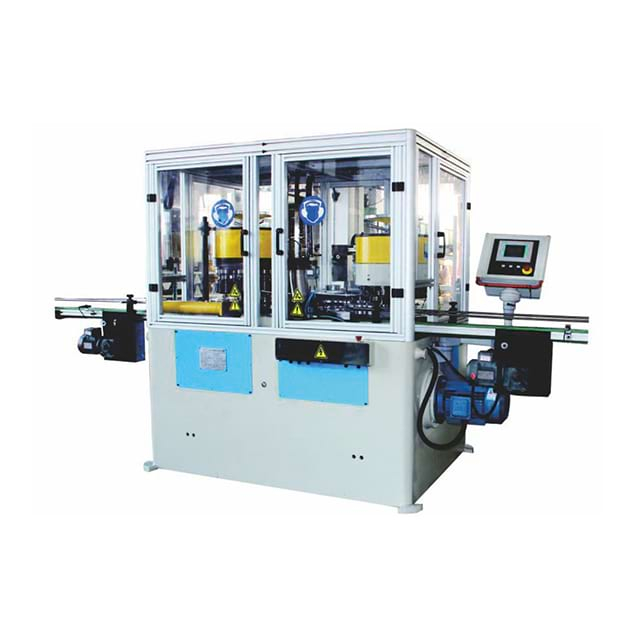

Combination Machine is one of the most important machine in the can making line, it performs the mission of forming the can shape and seaming the can body with ends.
Features：
Continuous innovation and improvement makes the machine more advanced with higher speed and stable working performance.
Vertical design for high speed and easy to connect with other machines.
Automatic can height adjustment by servo motor.
Servo motor or motor with inverter for speed regulation available for choice.
Multi-safety design for machine and personnel safety.
Recyclable central lubricating system.
Complete line fully automatic linking control system is available.
Technical Specification:
| Single/combination machine for food can,beverage can |
| Machine type | Model | Configur. (heads) | Can Dia. (mm) | Can Hei. (mm) | Capacity (cpm) |
| Necking machine | KF-NS8 | 8 | 52-73 | 50-125 | 400-500 |
| KF-NS10 | 10 | 52-73 | 50-125 | 500-600 |
| Beading machine | KF-GJ8 | 8 | 52-99 | 50-125 | 400-500 |
| KF-GJ10 | 10 | 52-99 | 50-125 | 500-600 |
| Seaming machine | KF-FG6 | 6 | 52-99 | 50-160 | 200-300 |
| KF-FG8 | 8 | 52-99 | 50-160 | 400-500 |
| KF-FG10 | 10 | 52-99 | 50-160 | 500-600 |
| 3-station combination machine | KF-FBS6 | 6 | 52-99 | 50-160 | 200-300 |
| KF-FBS8 | 8 | 52-99 | 50-160 | 400-500 |
| KF-FBS10 | 10 | 52-99 | 50-160 | 500-600 |
| 4-station combination machine | KF-NFBS6 | 6 | 52-99 | 50-160 | 200-300 |
| KF-NFBS8 | 8 | 52-99 | 50-160 | 400-500 |
| KF-NFBS10 | 10 | 52-99 | 50-160 | 500-600 |
| Double necking machine | KF-DNS8 | 8 | 52-73 | 50-125 | 400-500 |
| KF-DNS10 | 10 | 52-73 | 50-125 | 500-600 |
| Combination machine for milk powder can |
| Machine type | Model | Configur. (heads) | Can Dia. (mm) | Can Hei. (mm) | Capacity (cpm) |
| 3-station combination machine | KF-FBS4L | 4 | 99-153 | 110-190 | 120-140 |
| KF-FBS5L | 5 | 99-153 | 110-245 | 130-150 |
| KF-FBS6L | 6 | 99-153 | 110-245 | 160-180 |
| 3-station combination machine | KF-FBS6R | 6 | 99-153 | 110-245 | 160-200 |
| KF-FBS8R | 8 | 99-153 | 110-245 | 200-250 |
| Combination machine for aerosol can |
| Machine type | Model | Configur. (heads) | Can Dia. (mm) | Can Hei. (mm) | Capacity (cpm) |
| 3-station combination machine | KF-NFSS6A | 6 | 45-73 | 113-300 | 130-200 |
| KF-NFSS8A | 8 | 45-73 | 113-300 | 200-300 |
| 5-station combination machine | KF-NFSS8HA | 8 | 45-73 | 113-300 | 300-400 |
| Combination machine for general can (paints can) |
| Machine type | Model | Configur. (heads) | Can Dia. (mm) | Can Hei. (mm) | Capacity (cpm) |
| 3-station combination machine | KF-FSS4G | 4 | 99-175 | 100-230 | 80-120 |
| KF-FSS5G | 5 | 99-175 | 100-230 | 100-160 |
| KF-FSS6G | 6 | 99-165 | 100-230 | 150-200 |
