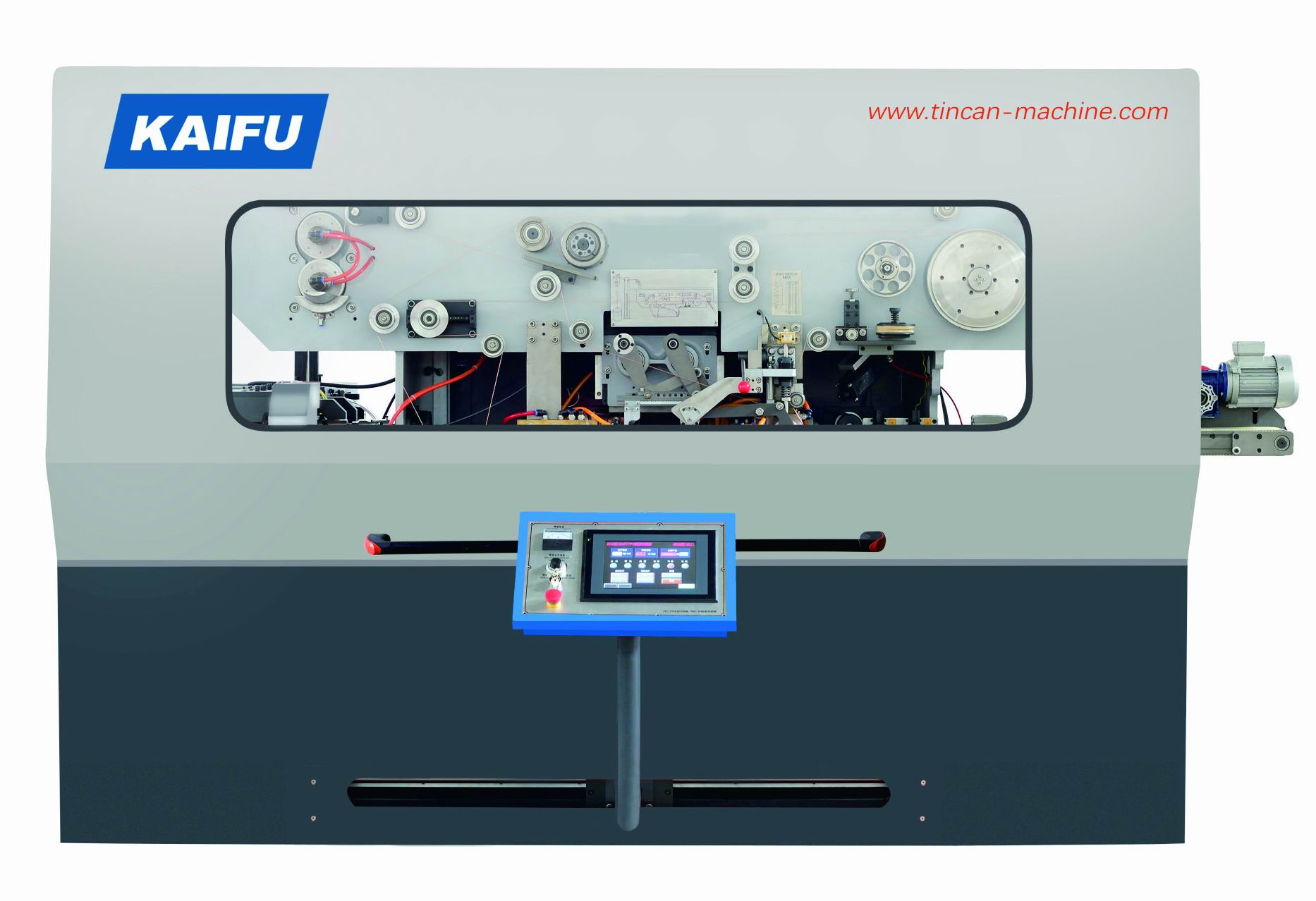

Can body welding machine is one of the most important machine in the 3-pieces can making line.
KAIFU welding machine is made on the high standard to ensure the produced cans with the good
welding quality and high precision to meet the request of the downstream machines.
KAIFU can body welding machine has the following features:
Feature:
1, With mechanical sheet feeding/pushing system to realize the stable running quality and lower trouble rate.
2, Adopts the advanced electronic adjusting welding inverter to ensure the smooth welding current input to
make the strong welding seam with smooth surface.
3, Adopts the advanced sheet flexing system.
4, Easy convenient to do can size change over.
5, One machine available for larger can size range.
6, The important parts adopt the ceramic and carbide material.
7, Can body pushing system with the servo motor to realize the the precise movement.
8, HMI operation, easy to operate the machine.
9, Ceramic, carbide material makes the components long life time and lower trouble rate.
Technical Specification:
| Model | KF-150 | KF-200 | KF-H300 |
| Can diameter | D52 -175mm | D52 -175mm | D52 -99mm |
| Can height | H50 -265mm | H50 -265mm | H65 -320mm |
| Production capacity | 150cpm | 200cpm | 300cpm |
| Welding Speed | 26m/min | 34m/min | 48m/min |
| Overlap | 0.35 -0.6mm | 0.35 -0.6mm | 0.35 -0.6mm |
| Sheet Thickness | 0.16-0.30mm | 0.16-0.30mm | 0.16-0.30mm |
| Sheet temper | T2.5 -DR8 | T2.5 -DR8 | T2.5 -DR8 |
| Copper wire | 1.38-1.5mm | 1.38-1.5mm | 1.38-1.5mm |
| Power | 22Kw | 28Kw | 38Kw |
| Compressed air | >800L/min, >0.6MPa | >800L/min, >0.6MPa | >800L/min, >0.6MPa |
| Weight | 2600kg | 3000kg | 3300kg |
| Dimension | 2060mm*1800*2100mm | 2100mm*1900*2100mm | 2300mm*1960*2150mm |
| Can type | Food can, Beverage can, Milk powder can, General can | Aerosol can |
| Model | KF-350 | KF-400 | KF-500 |
| Can diameter | D52 -99mm | D52 -99mm | D52 -99mm |
| Can height | H50 -150mm | H50 -150mm | H50 -150mm |
| Production capacity | 350cpm | 400cpm | 500cpm |
| Welding Speed | 50m/min | 56m/min | 66m/min |
| Overlap | 0.35 -0.6mm | 0.35 -0.6mm | 0.35 -0.6mm |
| Sheet Thickness | 0.14-0.30mm | 0.14-0.30mm | 0.14-0.30mm |
| Sheet temper | T2.5 -DR8 | T2.5 -DR8 | T2.5 -DR8 |
| Copper wire | 1.38-1.5mm | 1.38-1.5mm | 1.38-1.5mm |
| Power | 45Kw | 52Kw | 66Kw |
| Compressed air | >800L/min, >0.6MPa | >800L/min, >0.6MPa | >800L/min, >0.6MPa |
| Weight | 3300kg | 4200kg | 4600kg |
| Dimension | 2250mm*2100*2200mm | 2300mm*2120*2200mm | 2300mm*2120*2200mm |
| Can type | Food can, Beverage can, Milk powder can |
| Model | KF-D60 |
|
|
| Can diameter | D220 -300mm |
|
|
| Can height | H250 -500mm |
|
|
| Production capacity | 30-60CPM |
|
|
| Welding Speed | 23m/min |
|
|
| Overlap | 0.6-1mm |
|
|
| Sheet Thickness | 0.20-0.50mm |
|
|
| Sheet temper | T2.5 -DR8 |
|
|
| Copper wire | 1.38-1.5mm |
|
|
| Power | 22Kw |
|
|
| Compressed air | >800L/min, >0.6MPa |
|
|
| Weight | 3600kg |
|
|
| Dimension | 2400mm*2200*2200mm |
|
|
| Can type | Larger dia. general can, Retangular (square) can, Round Pail/Drum |
|
|
