KF-5XF
KAIFU

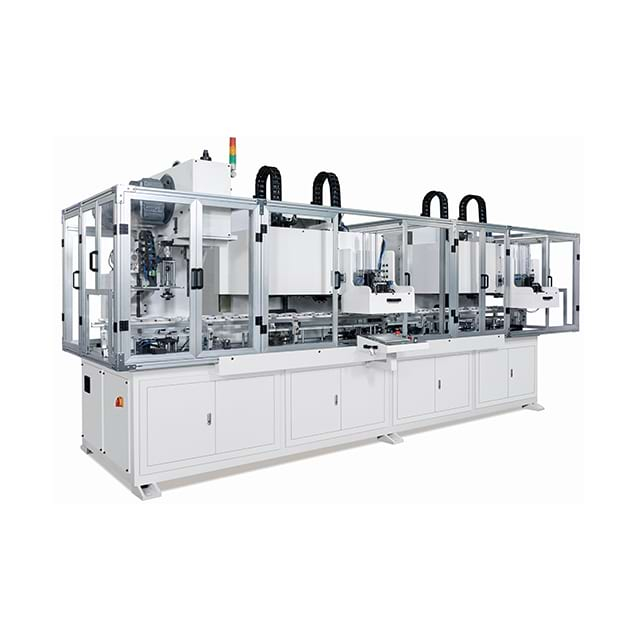

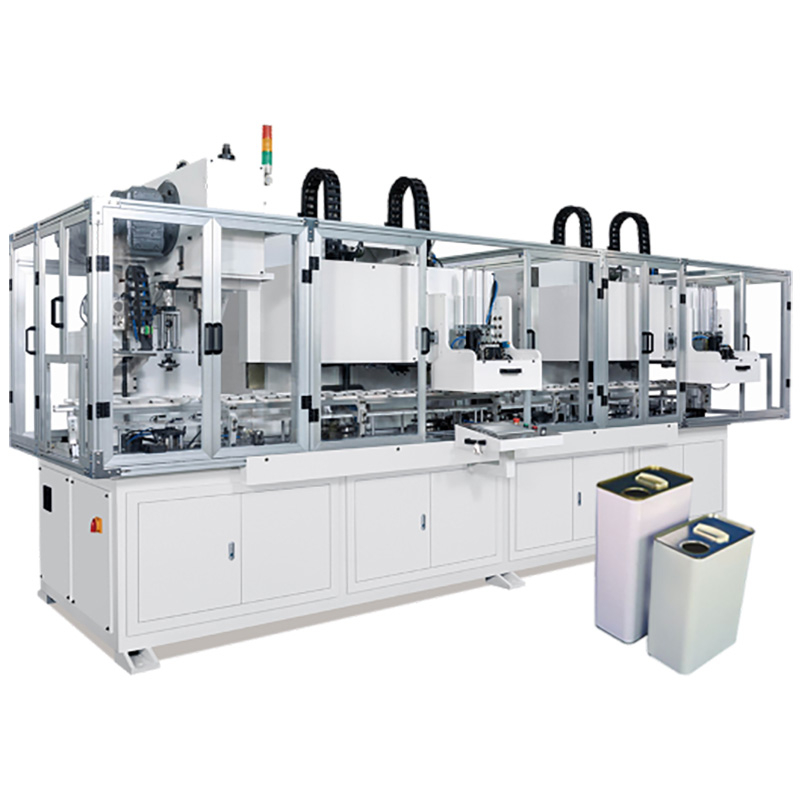

The machine is made with full of our efforts, refering to the advanced machines made in Europe, and added our own innovation and imporvement at the same time. It is designed with double moulds, double welding seam locatings, double square expanding moulds, doule heads seamings. Its speed is designed for 80CPM, the actual speed on the production is 60CPM stably.
Feature:
Adopts the ultrasonic sensor on the welding seam locating process to have the advantage of high precision locating performance and high speed.
With double heads square expanding, good sychron quality and higher speed.
With the integrated single head flanging, double heads seaming to minimize the deforming percentage.
Adopts the advanced seaming technology from France, Max speed reachs 80CPM.
Adopts the Rotating type continuous ends feeding system to make the ends feeding stably and high speed.
Technical Specification:
| Model | Model: KF-5XF |
| Function | Welding seam 1st locating/ 2nd locating/ square expending / bottom flanging/ bottom seaming/ turn over/lid flanging/ lid seaming |
| Capacity | 60-80CPM |
| Can size | For 1-5L rectangular can |
| Can height | 130-300mm |
| Sheet temper | T2.5-T4 |
| Compressed air | >300L/min, >0.6MPa |
| Voltage | 380V/50Hz/3Phase |
| Power | 46Kw |
| Conveyor height | 1000±10mm |
| Power | 25Kw |
| Dimension | 6000*1900*2450mm |
| Weight | 18000kg |
