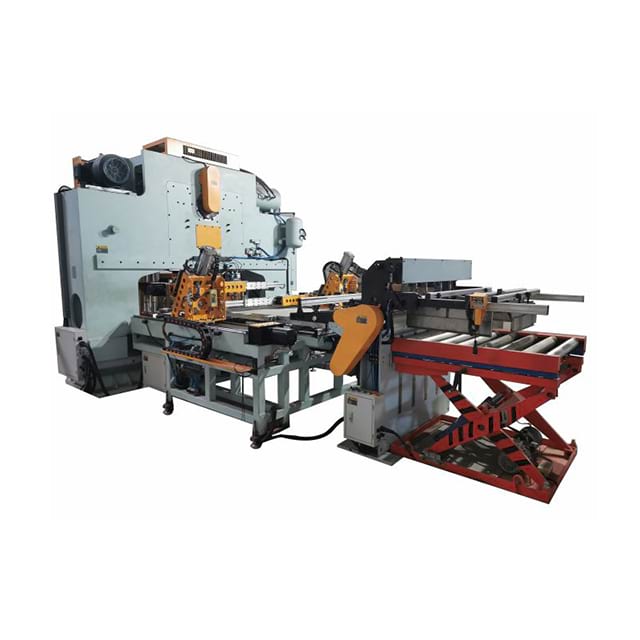

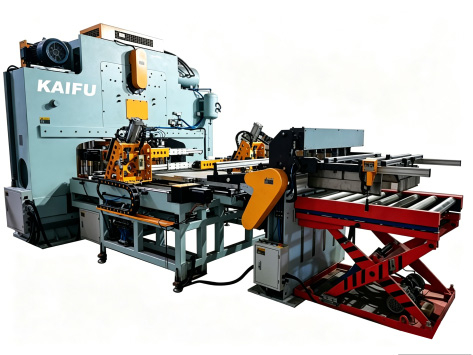

CNC Sheet Feed Press

With double robots Zigzag feeding system to realize the high speed and smooth sheet feeding.

Product Description

Product Features

With double robots Zigzag feeding system to realize the high speed and smooth sheet feeding.
New sheet feeding layout design to reduce the scrap rate and increase the sheet utilization rate.
With plenty of experience on mould designing and manufacturing to make the high precision mould with the high quality carbide material to realize the long life time performance.
The mould is available for the thin & hard tinplate sheet without reducing the strength of the finished can ends products.
Adopts the international standard safe guard protection system to ensure the safe protection.
Modular design make it easy to do maintenance.
HMI operation, easy to operate the machine.
The customized design for the mould is available based on the requirement of the customer.

Technical Specification:

Model No	KF-6A20A	KF-6A20B	KF-6A18A	KF-6A18B	KF-6A16A
Norminal Force(kn)	1250	1250	1100	1100	900
Nominal Stroke(mm)	3	3	2	2	3
Slide Stroke(mm)	170	170	170	105	170
SPM	85~100	85~100	85~100	160~210	85~100
Max Die Height(mm)	500	500	500	400	500
Die Height Adj(mm)	20	20	20	20	20
Bolster(B×L)(mm)	650*1500	450*1500	650*1500	350*1200	650*1500
T-slot Center Distance	Customized by mould	300	300	170	Customized by mould
Bolster Thickness(mm)	130	130	110	110	110
Slide Area(B×L)(mm)	600*1200	340*1200	600*1200	350*1000	600*1200
Slide Bottom T-slot Center Distance	Customized by mould	240	240	150	Customized by mould
Main Motor(kw)	22	22	18.5	15	15
Frequency Adj Ratio	22	22	18.5	18.5	18.5
Die Center Portal Opening Width	2000	2200	2000	2100(1900)	2000
Height from Bolster to Floor(adjusting spacer included)	770	770	770	770	770
Weight(kg)	26000	21500	21500	16000	21500

Model No	KF-6A16B	KF-6A16C	KF-6A16C	KF-6A15	KF-6A14
Norminal Force(kn)	900	900	900	750	700
Nominal Stroke(mm)	3	2	2	3	2
Slide Stroke(mm)	170	105	75(90)	170	105
SPM	85~100	160~210	190~250	85~100	160~210
Max Die Height(mm)	500	400	400	500	400
Die Height Adj(mm)	20	20	20	20	20
Bolster(B×L)(mm)	400*1200	350*1200	350*1200	400*1200	320*1200
T-slot Center Distance	300	170	170	170	170
Bolster Thickness(mm)	110	110	110	110	100
Slide Area(B×L)(mm)	350*1000	350*1000	350*1000	350*800	350*800
Slide Bottom T-slot Center Distance	240	150	150	240	150
Main Motor(kw)	15	15	15	15	15
Frequency Adj Ratio	18.5	18.5	18.5	18.5	18.5
Die Center Portal Opening Width	2300(2100)	2100(1900)	1900	2400(2000)	2100(1900)
Height from Bolster to Floor(adjusting spacer included)	770	770	770	770	770
Weight(kg)	15500	13000	13000	12600	10500
