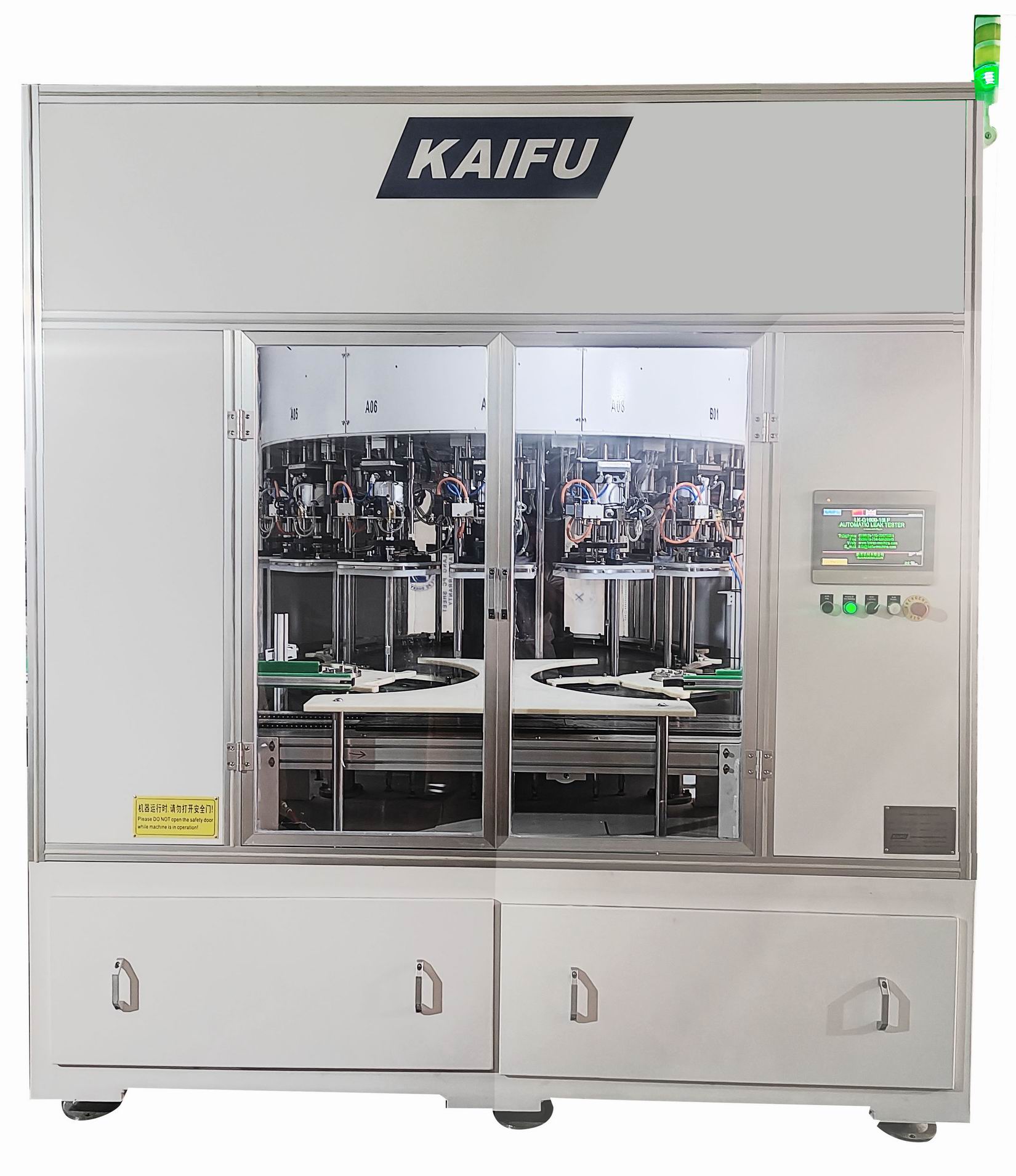

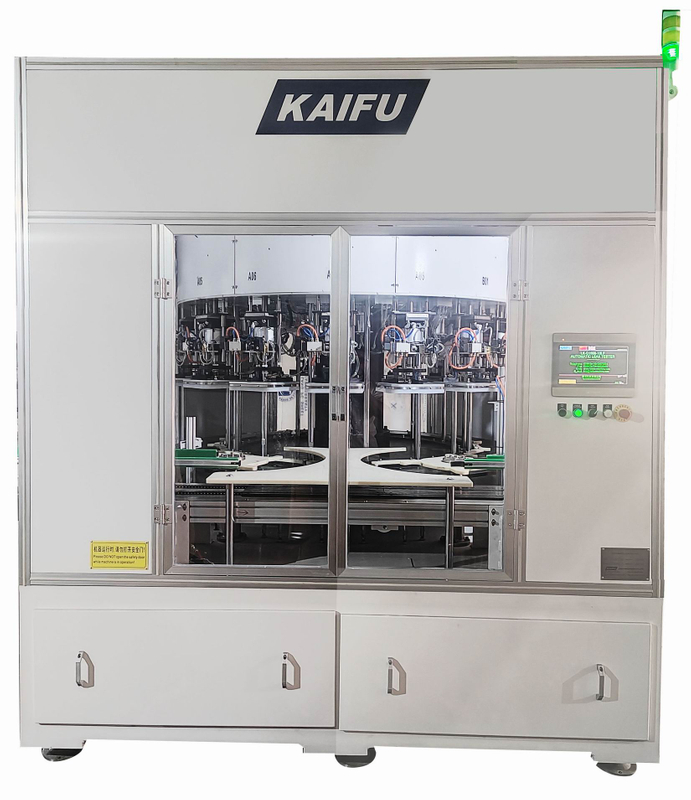

The leak testing machine is designed for the food can with the vacuum air testing system. The machine is equipped with the accurate detecting components and sealing components to ensure the testing performance / quality. The can body is elevated by the mechanical cam and to be sucked by the vacuum air and do the air pressure holding during the platform is rotating around. The testing system is working to test if the pressure inside the can has the micro change to judge if the can is leaked, and the leaked can will be rejected.
Specification:
Model | KF-JF12 | KF-JF16 |
Type | 12 heads | 16 heads |
Capacity | 28-32cpm | 35-45cpm |
Can Diameter | 18L square can | 18L square can |
Can Height | 100-500mm | 100-500mm |
Testing Precision | 0.15mm | 0.15mm |
Testing Air Pressure | 0.6MPA, 65L/min | 0.6MPA, 65L/min |
Power | 3.5Kw | 4.0 Kw |
Voltage | AC380V/60Hz/3Phase | AC380V/60Hz/3Phase |
